CD Onboard Air System - 12v


(click image for large view)

The Constant Duty Onboard Air System from Viair™ is one of the most reliable and sophisticated, all-inclusive onboard air systems available today. The Constant Duty Onboard Air System comes complete with a long-running 450C, 100% Duty Cycle compressor that will fill the supplied 2.5 gallon tank from 110-150 PSI in approximately one minute. The Constant Duty Onboard Air System can operate for longer periods of time without needing to rest. Included is everything you'll need to add a reliable air source to your vehicle as well as inflate tires with the included clip-on air chuck. For vehicles with up to 37-inch tires!

CD Onboard Air System contains:
(1) 2.5 Gallon Viair Air Tank
(1) 450C model Viair Air Compressor
(1) 35ft. Coil Hose
(1) 1/4" Quick Connect Stud (F)
(1) 1/4" NPT Quick Connect Coupler (F)
(1) Dash Panel Gauge with ON/OFF Switch
(1) Pressure Switch with Relay (110 PSI on, 150 PSI off)
(1) Reducer (1/8" NPT F to 1/4" NPT M)
(1) 1/4" NPT 175 PSI Safety Valve
(1) 1/4" Drain Cock
(3) 1/4" NPT Compression Fittings

450 Series Standard Features:
Oil-less design.
Hi-performance PTFE piston ring.
Stainless Steel Valves.
Moisture and dust resistant
Moisture resistant on/off switch
Gear-less direct drive motor.
Anodized aluminum alloy cylinder.
Mounting plates vibration isolators.
Auto reset thermal overload protector.

450 Series Specs:
12 Volt.
19 max amps.
1/3 HP.
150 PSI max working pressure.
158 F max ambient temperature.
-40 F min ambient temperature.
Permanent magentic motor.
100% max duty cycle at 100 PSI - at 72 F.
Size - 12-1/2" L x 4" W x 7" H.
Weight - 10 lbs.

.
450C Tire Inflation Rates
  Begin/End PSI 31" X 10.5"
  0 To 30 PSI 4 Min. 05 Sec.
  15 To 30 PSI 2 Min. 10 Sec.
  Begin/End PSI 33" X 12.5"
  0 To 30 PSI 5 Min. 30 Sec.
  15 To 30 PSI 2 Min. 50 Sec.
  Begin/End PSI 35" X 12.5"
  0 To 30 PSI 6 Min. 55 Sec.
  15 To 30 PSI 3 Min. 30 Sec.
.

U.S. SHIPMENTS - LOWER 48
$499.95



HD Onboard Air System - 12v


(click image for large view)

The Heavy Duty Onboard Air System from Viair™ is one of the most reliable and sophisticated, all-inclusive onboard air systems available today. The Heavy Duty Onboard Air System comes complete with a super fast 400C, 33% Duty Cycle compressor at its heart that will fill the supplied 2.5 gallon tank from 110-150 PSI in approximately 45 seconds. Included is everything you'll need to add a reliable air source to your vehicle as well as inflate tires with the included clip-on air chuck. For vehicles with up to 35-inch tires!

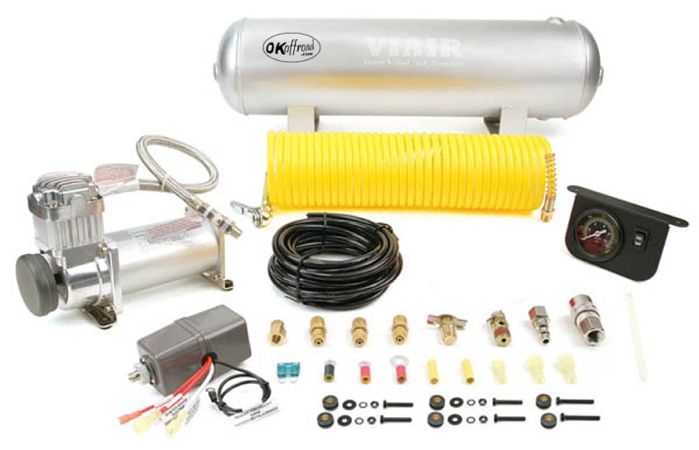

HD Onboard Air System contains:
(1) 2.5 Gallon Viair Air Tank
(1) 400C model Viair Air Compressor
(1) 35ft. Coil Hose
(1) 1/4" Quick Connect Stud (F)
(1) 1/4" NPT Quick Connect Coupler (F)
(1) Dash Panel Gauge with ON/OFF Switch
(1) Pressure Switch with Relay (110 PSI on, 150 PSI off)
(1) Reducer (1/8" NPT F to 1/4" NPT M)
(1) 1/4" NPT 175 PSI Safety Valve
(1) 1/4" Drain Cock
(3) 1/4" NPT Compression Fittings

400 Series Standard Features:
Oil-less design.
Hi-performance PTFE piston ring.
Stainless Steel Valves.
Moisture and dust resistant
Moisture resistant on/off switch
Gear-less direct drive motor.
Anodized aluminum alloy cylinder.
Mounting plates vibration isolators.
Auto reset thermal overload protector.

400 Series Specs:
12 Volt.
28.5 max amps.
1/4 HP.
150 PSI max working pressure.
158 F max ambient temperature.
-40 F min ambient temperature.
Permanent magentic motor.
40 minutes max duty cycle at 30 PSI - at 72 F.
33% (15 min on - 30 min off) max duty cycle
at 100 PSI - at 72 F.
Size - 11-1/4" L x 4" W x 7" H.
Weight - 8 lbs.

.
400C Tire Inflation Rates
  Begin/End PSI 31" X 10.5"
  0 To 30 PSI 2 Min. 28 Sec.
  15 To 30 PSI 1 Min. 25 Sec.
  Begin/End PSI 33" X 12.5"
  0 To 30 PSI 4 Min. 00 Sec.
  15 To 30 PSI 2 Min. 00 Sec.
  Begin/End PSI 35" X 12.5"
  0 To 30 PSI 4 Min. 50 Sec.
  15 To 30 PSI 2 Min. 20 Sec.
.

U.S. SHIPMENTS - LOWER 48
$449.95



OKoffroad Onboard air Kit

Got your own Compressor? With this kit, we put together every component needed for an onboard air system. Augment your air compressor with our complete onboard air kit. Order one of our listed compressors, and have the onboard air kit shipped with it at no extra freight cost.
